Damage investigations of buildings affected by cyclones have shown that garage doors have under-performed other parts of buildings. If a garage door fails prematurely during a cyclone, the damage to the building, contents and surrounding property can be far more expensive than the door itself and can also endanger lives. To reduce the risk of this happening, it is recommended that you install a garage door that is adequately wind rated.
Comprehensively designed for use in all cyclone-affected regions throughout Australia, the B&D Windpanel™ has been independently tested by a NATA certified labaratory and independent engineer, and is approved for use in high wind cyclone regions.
The B&D Windpanel™ can withstand wind speeds of up to 317km/hr. It looks just like a normal sectional door but has been re-engineered to deliver additional strength, and incorporate the high strength aluminium bracing system.
The B&D Windpanel now features a new patent pending Tracklock system, which delivers brace-free protection against high winds for single opening doors up to 3100mm wide in Region C.
B&D Windpanel doors features numerous support fixtures to ensure the door resists blow in and blow out in the event of a cyclone. For doors above 3100mm wide, the B&D Windpanel incorporates a removable high strength aluminium bracing system.
The Aluminium Bracing System:
- When a cyclone is imminent, heavy-duty aluminium braces are secured to both the door and garage structure.
- Up to 4 braces are required depending on the door width and which cyclone region the door is installed.
- Braces are secured to both the garage (to the floor and the lintel) and to the garage door.
- Installation process takes under 5 minutes per brace and only requires a screwdriver.
- Once cyclone passes, the braces are removed, placed in their dedicated B&D-designed storage system.
- Additional reinforced track brackets – secured every 250mm and constructed of quality galvanized steel
- Each individual door panel features 2 x steel reinforcing struts – giving each panel enhanced support
- Additional centre stiles in every panel

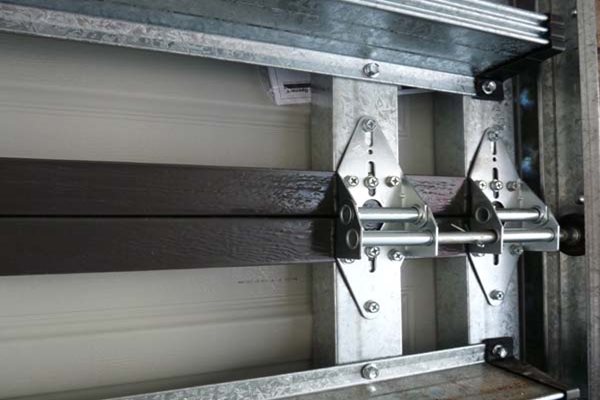

- Double end stiles, extended axles and wheels (which are pinned to prevent movement)
- The high wind product features heavy duty extruded aluminium braces, above door brackets, floor central mounting point & numerous support fixtures throughout, ensuring the door resists blow in and blow out in cyclone affected regions throughout Australia
- Storage system for braces (optional)
- Springs tested to exceed the ˆAustralian Standard > 20,000 cycles
The B&D Windpanel™ has been tested in accordance to AS/NZS 4505:2012 (Garage Doors & Other Large Access Doors) which complies to AS/NZS 1170.2:2011 (Wind actions) and AS 4055:2012 (Wind loads for housing).
The NT Deemed to Comply Manual (DTCM) is referenced in the Building Code of Australia, Volume 2, Part 3.10.1 as an acceptable construction manual for high wind areas.
The Manual contains products or systems which have been assessed for structural adequacy for cyclonic wind loads and approved by the NT Building Advisory Committee (BAC). These drawings can be accepted by architects, builders, building certifiers, designers, engineers etc as complying with the structural requirements of the NT Building Act.
B&D’s DTCM drawings can be downloaded via the DTCM website or by clicking here.
